ProtoTech’s 3D Measure Up comes with a very friendly and slick new GUI.

ProtoTech Solutions has released its latest version V (2.0.0.0) of 3D Measure Up with new exciting features. ProtoTech’s 3D Measure Up application allows the users to accurately measure linear, along-surface and girth lengths on a 3D scanned body.

Main features of this release-

  • New GUI:

Fig 1: New GUI

User-friendly GUI to understand the features and workflow of 3D Measurement Software, new GUI provides a better look and feel.

  • Changeable themes for GUI:


    Fig 2: Default theme

Fig 3: Dark Theme

Themes can be changed according to user preference. Currently, we are providing two themes as shown above. One is the default workspace and another one is dark.

  • Status bar:

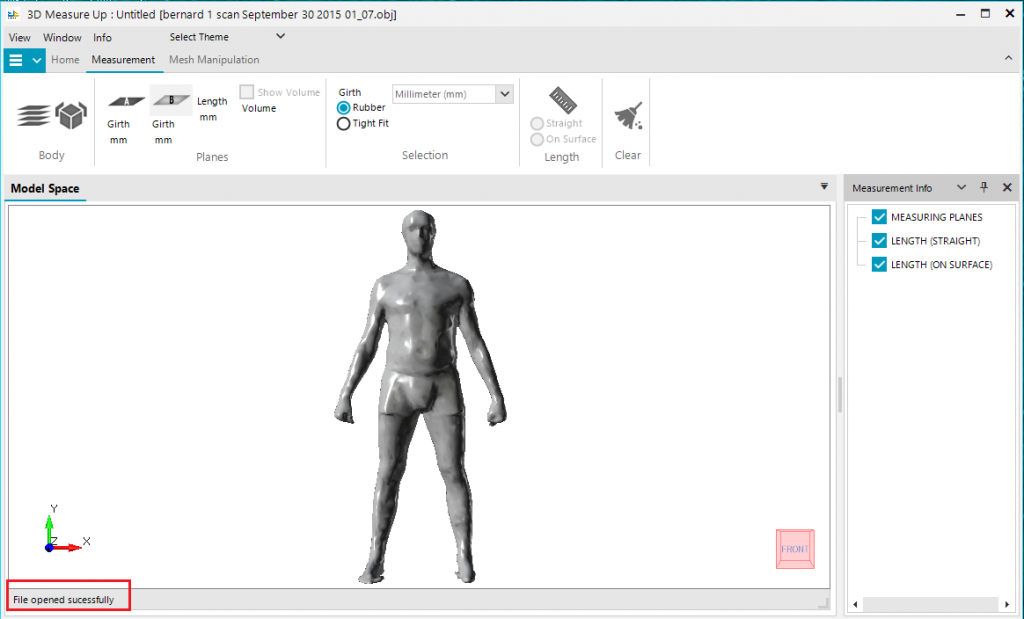

    Fig 4: Status bar

Now the user can see what operation is being performed, and do actions accordingly. Also, it provides context and guidance for the next action/s to be performed.

  • Save as Obj file:

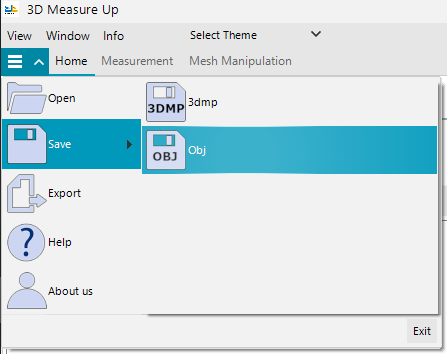

Fig 5: Save as Obj

User can save the current model as OBJ file after correcting a few details in mesh if required.

  • Quick Help:

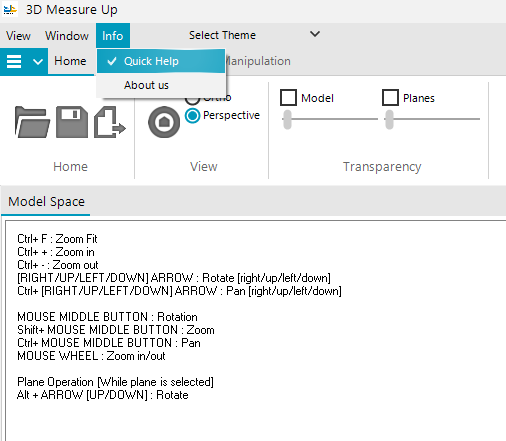

    Fig 6: Quick Help

Now user can peek Quick Help to operate in model space. It provides controls from keyboard and mouse to work in model space.

  • Most recently used items:

Fig 6: Most recently used files

User can see and open the most recently used files.

To know more about 3D Measure Up, Please click here

Why use 3D Measure Up?

  • Allow the user to measure various dimensions on mesh files (Currently, OBJ and STL files are supported)
  • Allow the user to measure girths on the model at any location
  • The direct distance between any two points and on surface distance measurements are possible
  • This tool is very useful for Human body measurements
  • Some typical human body measurements are computed automatically on a single click
  • The model can be aligned for more accurate measurements
  • Support Mesh cleanup and mesh healing functionalities
  • Export data as CSV
  • Save project and restore
  • Measure volume of the entire model or selected portion only.
